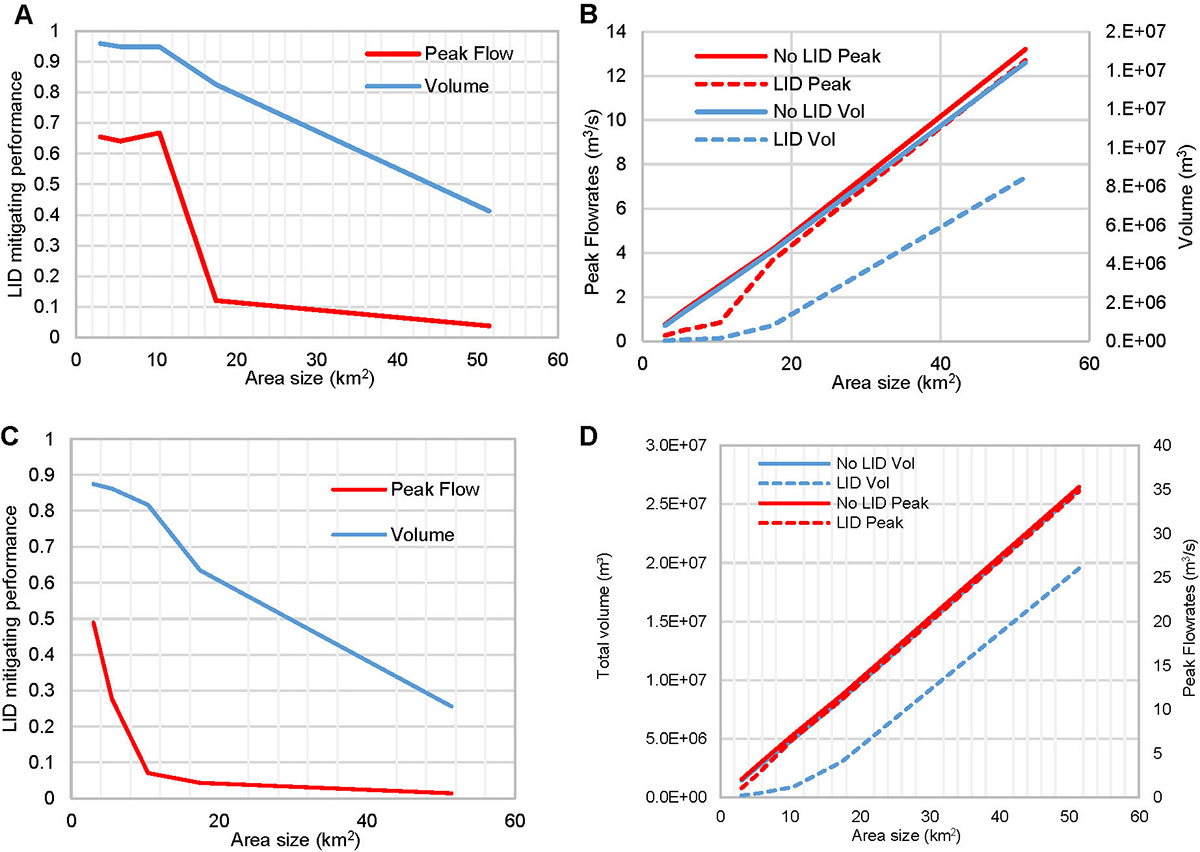

Figure 4


Download original image

(A) LID mitigating performance vs. increasing area for peak flow and total volume for 2022; (B) computed peak flows and volumes computed with LIDs and without LIDs implemented in 2022; (C) LID mitigating performance for the RCP 4.5 scenarios; (D) corresponding peak flows and volumes with and without LIDs under RCP4.5. Note that (A) and (B) are computed with 2022 rainfall simulations (A1 to A5) and (A1S1 to A5S1); (C) and (D) are computed using (B1 to B5) and (B1S1 to B5S1) in RCP4.5.
