Figure 2

Download original image

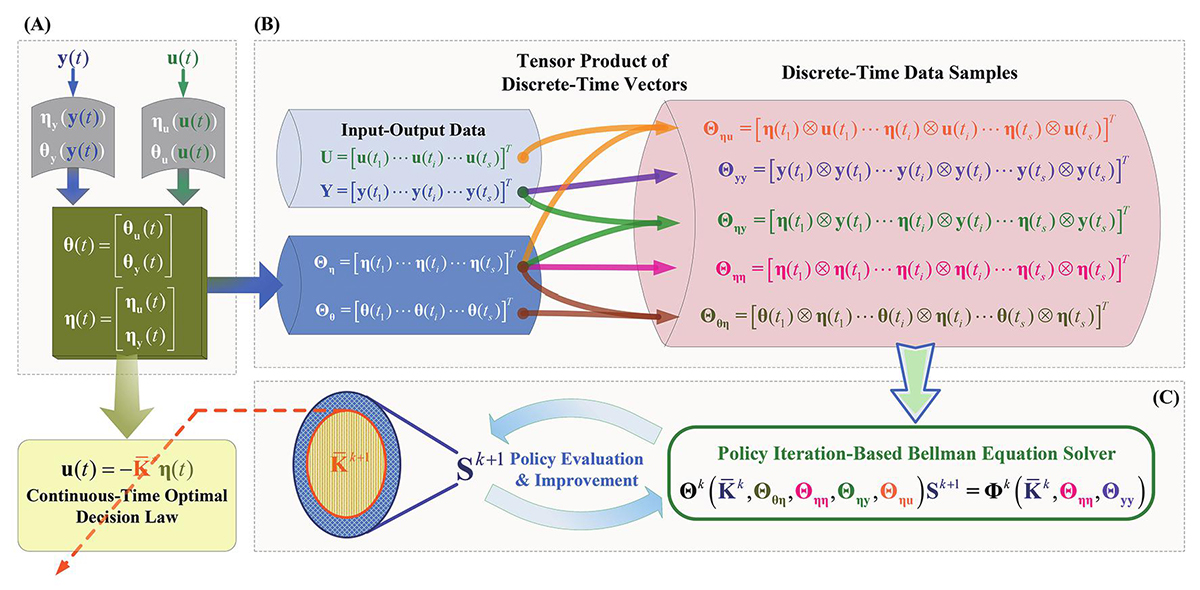

Computational approach for deriving optimal design laws from the data. (A) Pre-process the actions and outputs of the dynamical system and construct the feedforward signals that will be used for the feedback gain learning and the design of an online real-time control loop (Supplementary information, Section 2A). (B) Measure the input-output data, as well as the feedforward signals, over discrete-time series, based on which the discrete-time data samples are assembled using the tensor product (Supplementary information, Section 2B). (C) This part is central for learning the feedback gain from discrete-time data. First, calculate the Bellman equation for optimality via policy iterations. Then, through policy evaluation and improvement, the optimal feedback gain is obtained from the discrete-time data samples with rigorous mathematical operations and convergence deduction (Supplementary information, Section 2C). Finally, both the feedforward signal in (A) and the feedback gain
contribute to the optimal decision law in eq. (5).
