Figure 5
Download original image

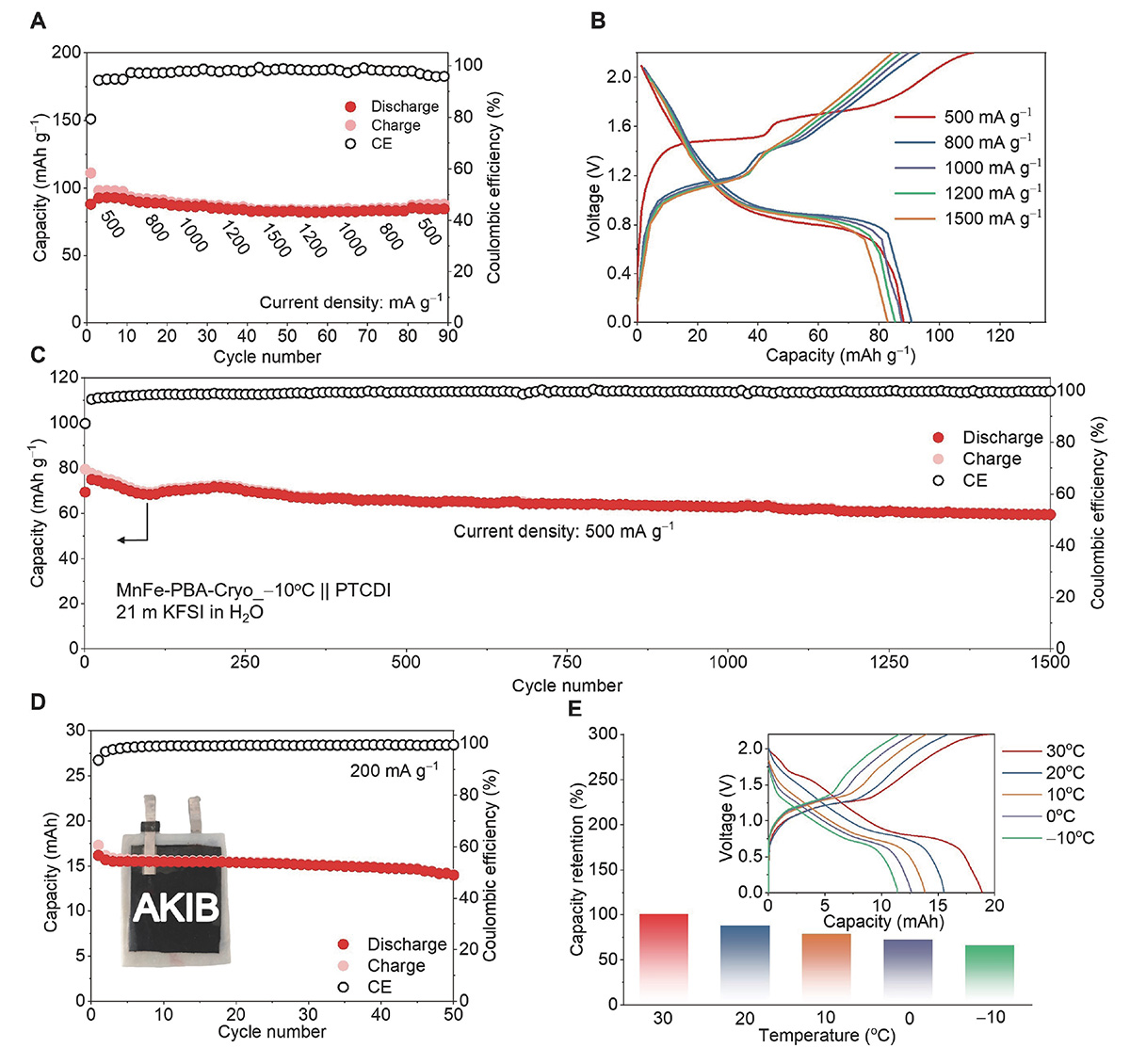

(A) Rate performance of the MnFe_PBA_Cryo_−10°C || PTCDI full battery at current densities in the range from 500 to 1500 mA g−1. (B) Charge-discharge curves of the MnFe_PBA_Cryo_−10°C || PTCDI full battery at current densities in the 500 to 1500 mA g−1 range. (C) Cycling performances of the MnFe_PBA_Cryo_−10°C || PTCDI full battery at a current density of 500 mA g−1. (D) Cycling performances of the MnFe_PBA_Cryo_−10°C || PTCDI pouch-type full battery at a current density of 200 mA g−1. (E) Performance of the MnFe_PBA_Cryo_−10°C || PTCDI pouch-type full battery at different temperatures (−10°C to 30°C) at the current density of 200 mA g−1.
