Figure 1


Download original image

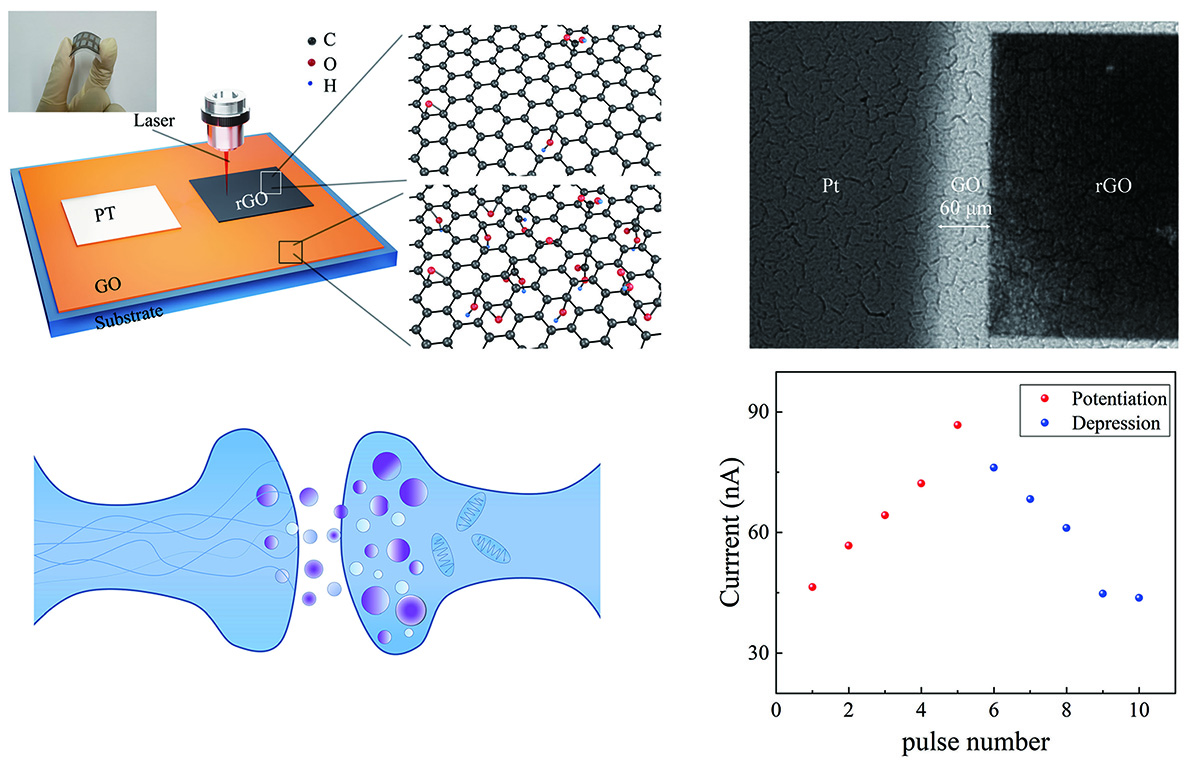

(A) Schematic drawing of Pt/GO/rGO memristor structure enabled by direction laser writing; (B) an optical image of the Pt/GO/rGO memristor captured by an optical microscope; (C) schematic image of the synapse stracture; (D) the synaptic potentiation and depression under the modulation of cyclic pulse signals.
